What is CADtoSketch used for?

CADtoSketch converts STEP CAD files into millimeter-accurate ISO technical drawings with views, a section view and a hole table, exported as PDF, DXF or SVG. It is a good fit for engineers producing quick drawings from 3D models and makers preparing parts for manufacturing quotes.

How much does CADtoSketch cost?

CADtoSketch is a paid product with no free plan.

Is CADtoSketch open source?

No. CADtoSketch is proprietary (closed-source) software and can't be self-hosted. In the 3D & CAD category, open-source options include FreeCAD, LibreCAD and OpenSCAD.

What are some alternatives to CADtoSketch?

CADtoSketch competes with Autodesk Fusion, SolidWorks and Onshape.

CADtoSketch: features, pricing and alternatives

About CADtoSketch

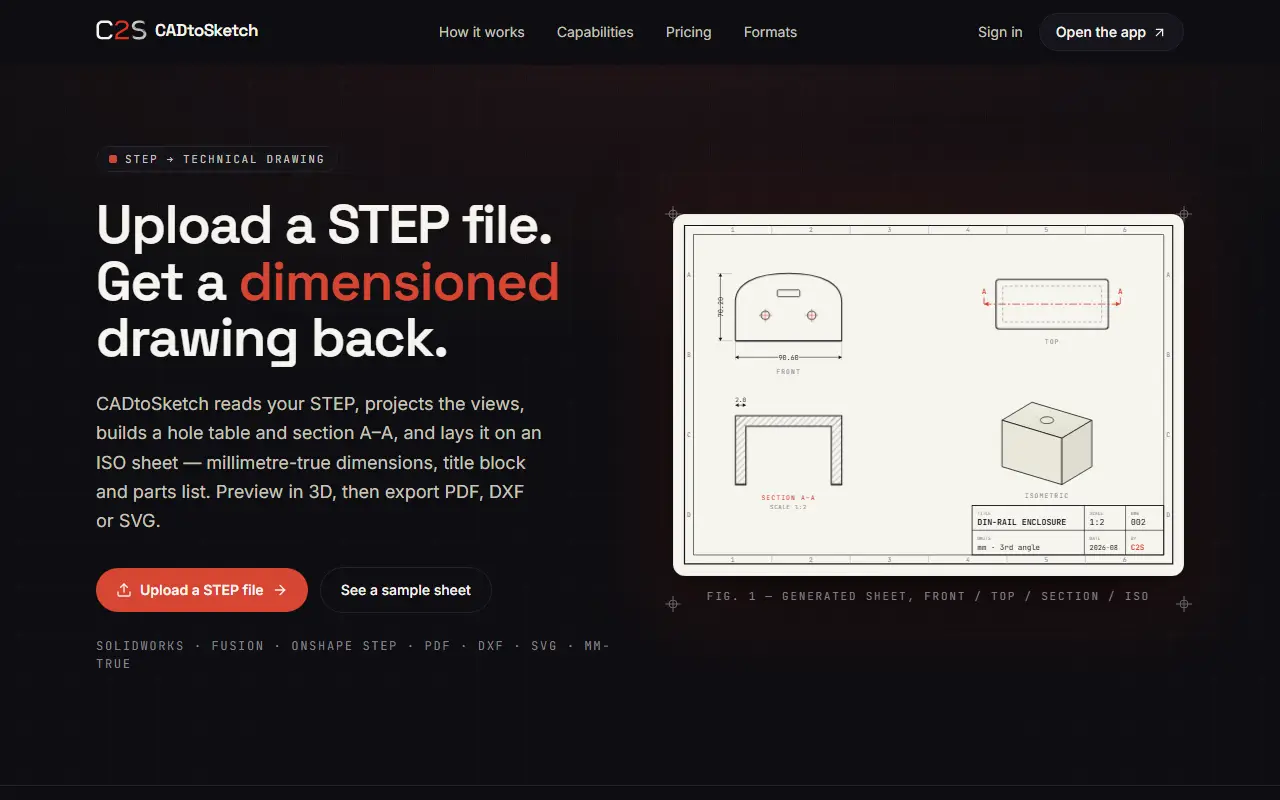

CADtoSketch is a web tool that converts a STEP file into a technical drawing following ISO conventions. The drawing is dimensionally true to the model in millimeters and includes standard views, a section view labeled A-A, a hole table and radius callouts.

Results can be exported as PDF, DXF or SVG, which covers both printing and editing in other CAD or drawing tools. The site says the first generation is included, so users can try it before paying. Supported file limits, drawing standards beyond ISO and pricing are not stated in the available material.

Key features

STEP file to ISO drawing conversion
Standard views and A-A section view
Automatic hole table
Radius callouts
Export to PDF, DXF or SVG

Good fit for

→Engineers producing quick drawings from 3D models
→Makers preparing parts for manufacturing quotes

Tags: cad; step; technical-drawing; dxf; svg; iso; engineering

CADtoSketch: questions and answers

What is CADtoSketch used for?: CADtoSketch converts STEP CAD files into millimeter-accurate ISO technical drawings with views, a section view and a hole table, exported as PDF, DXF or SVG. It is a good fit for engineers producing quick drawings from 3D models and makers preparing parts for manufacturing quotes.
How much does CADtoSketch cost?: CADtoSketch is a paid product with no free plan.
Is CADtoSketch open source?: No. CADtoSketch is proprietary (closed-source) software and can't be self-hosted. In the 3D & CAD category, open-source options include FreeCAD, LibreCAD and OpenSCAD.
What are some alternatives to CADtoSketch?: CADtoSketch competes with Autodesk Fusion, SolidWorks and Onshape.
